drylin® T rail guides

The dimensions of the drylin® T rail guides are the same as the usual recirculating ball bearing guides. They are available in seven installation sizes - users have the choice between three different carriage options: with manually or automatically adjustable clearance or an extremely robust heavy-duty version. The sliding elements are secure within the carriage body, especially suited when pulling down from the rail. The drylin® T carriage guides can handle loads up to 14,000 N, have a service life of up to 50,000 km and are extremely dirt-resistant.

The drylin® T rail guide are identical with regard to connector and hole dimensions:

  • INA: KUVE -B • KWVE-B • KWE-B • KWSE / KUSE
  • Bosch Rexroth: FNS • FLS • SNS • SLSS • NH • SLH • FNN • SNN
  • THK: SHS-C/LC • HSR-A/LA • HSR-B/LB/BM
  • Hiwin: HGW-CC • QHW-CC • RGW-CC • RGW-HC
  • Rollon: MRS • MRS-L IKO: MRS • MRS-L
  • Rodriguez: BRH-A • BRH-AL • MSR-E • MSR-LE
  • Romani: HRC-FN

Expert system linear guides

Expert system linear guides

System selection & service life calculation of linear guides.
FAQs

FAQs

Frequently asked questions about igus® drylin®

Due to order peaks, the delivery time for single items is 10-15 working days longer than stated. Please refer to our order confirmation for the specific delivery date. For urgent, short-term requirements, please contact us personally so that we can realise the delivery time necessary for you. You will find your contact person at the top of the menu under "My contact person", next to the language/country selection, or on this page.

List
Tile

Number of products: 22

drylin® T guide carriage TW-01
drylin® T guide carriage TW-01
  • drylin® T linear carriage of the standard 01 series
  • With individual clearance adjustment
  • Long service life due to iglidur® J
  • Optionally configurable as floating bearing version in y or z direction
  • Material: aluminium housing, plastic lid, iglidur® J slider
35.25 USD/Pc.
12 items, thereof ready for shipping from Germany:
4 ready for shipping in 24 - 48 hours
8 ready for shipping in 3 - 4 working days
To the product page

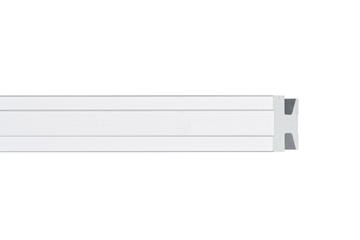

drylin® T guide rail TS
drylin® T guide rail TS
Material: Aluminium, hard anodised


66.24 USD/m
8 items, thereof ready for shipping from Germany:
4 ready for shipping in 24 - 48 hours
4 ready for shipping in 3 - 4 working days
To the product page

drylin® T guide carriage TWA-01
drylin® T guide carriage TWA-01
  • drylin® T automatic linear carriage of the standard series 01
  • With automatic bearing clearance adjustment
  • Adjustment and cancellation of the pretension through the supplied pretension key
  • In operation, the bearing clearance automatically adjusts itself
  • Long service life due to iglidur® J
  • Material: aluminium housing, plastic lid, iglidur® J slider
35.25 USD/Pc.
12 items, thereof ready for shipping from Germany:
4 ready for shipping in 24 - 48 hours
8 ready for shipping in 3 - 4 working days
To the product page

drylin® T low-profile guide rail TS-04
drylin® T low-profile guide rail TS-04
Material: aluminium, hard-anodised

69.11 USD/m
8 items, thereof ready for shipping from Germany:
4 ready for shipping in 24 - 48 hours
To the product page

drylin® T guide carriage TW-01-HKA
drylin® T guide carriage TW-01-HKA
  • drylin® T linear carriage of the standard series 01
  • With fitted manual clamp
  • Individual clearance adjustment
  • Long service life due to iglidur® J
  • Optionally configurable as floating bearing version in y direction
  • Material: aluminium housing, plastic lid, iglidur® J slider
40.25 USD/Pc.
8 items, thereof ready for shipping from Germany:
8 ready for shipping in 3 - 4 working days
To the product page

drylin® T miniature guide carriage TW-04
drylin® T miniature guide carriage TW-04
  • drylin® T low profile linear carriage of the series 04
  • Robust type
  • Easy installation
  • Captive sliding elements
  • Preset bearing clearance
  • Optionally configurable as floating bearing version in the y and z direction
  • Material: Housing zinc die-casting
  • iglidur® J sliding element, mount: TW-04-07, TW-04-07-LLZ: iglidur® J200
15.70 USD/Pc.
14 items, thereof ready for shipping from Germany:
5 ready for shipping in 24 - 48 hours
6 ready for shipping in 3 - 4 working days
To the product page

drylin® T miniature guide carriage TWE-04
drylin® T miniature guide carriage TWE-04
  • drylin® T adjustable low profile linear carriage of the series 04
  • Robust type
  • With manual clearance adjustment on the carriage
  • High corrosion resistance through cathodic dip coating
  • Material: Housing die cast zinc, iglidur® J slider
30.68 USD/Pc.
2 items, thereof ready for shipping from Germany:
2 ready for shipping in 24 - 48 hours
To the product page

drylin® T guide carriage TW-12
drylin® T guide carriage TW-12
  • New generation of high performance
  • Robust design
  • Captive bearing elements made from iglidur® J200
  • 50% longer service life in comparison to iglidur® J
  • Standard bearing alignment
  • Easy installation
  • Material: Aluminium housing, stainless steel lid, iglidur® J200 slider
55.09 USD/Pc.
12 items, thereof ready for shipping from Germany:
4 ready for shipping in 24 - 48 hours
To the product page

drylin® T rail guide, complete system TK-01
drylin® T rail guide, complete system TK-01
Upon request
To the product page

drylin® T linear guide, complete system, carriage with clamp and manual clearance adjustment
drylin® T linear guide, complete system, carriage with clamp and manual clearance adjustment
Upon request
To the product page

drylin® T miniature guide carriage with preload TW-04
drylin® T miniature guide carriage with preload TW-04
  • Robust type
  • Easy installation
  • Captive sliding elements
Upon request
5 items, thereof ready for shipping from Germany:
5 ready for shipping in 10 working days
To the product page

drylin® T manual clamping TWBM-01
drylin® T manual clamping TWBM-01
Solid design with brass bottom clamp
237.01 USD/Pc.
1 items, thereof ready for shipping from Germany:
1 ready for shipping in 24 - 48 hours
To the product page

drylin® T guide rail TS-CA Econ
drylin® T guide rail TS-CA Econ
  • drylin® T guide rails with clear anodised finish
  • Corrosion-resistant surface
  • Consistent silver colour ideal for visible parts
  • Clear anodised, salt-spray tested (NSS) according to DIN EN 9227/ASTM B-117
61.61 USD/m
4 items, thereof ready for shipping from Germany:
1 ready for shipping in 24 - 48 hours
3 ready for shipping in 3 - 4 working days
To the product page

drylin® T guide carriage TW-03
drylin® T guide carriage TW-03
  • Please note: only runs on TS-01-20 rail
  • drylin® T linear carriage from the 03 compact series
  • Tall slim design
  • For robust requirements
  • Easy installation
  • Captive sliding elements
  • Preset bearing clearance
  • Material: aluminium housing, stainless steel cover, iglidur® J2 slider
  • Available as fixed and floating bearing (y- and z-direction)
59.33 USD/Pc.
3 items, thereof ready for shipping from Germany:
3 ready for shipping in 24 - 48 hours
To the product page

drylin® T guide rail TS-11
drylin® T guide rail TS-11
Material: Hollow profile, aluminium, clear anodised
74.25 USD/m
2 items, thereof ready for shipping from Germany:
2 ready for shipping in 24 - 48 hours
To the product page
