Throughfeed machines

Maximum flexibility despite high dust loads and fast throughput speed

To be profitable, moulding or gluing machines must be able to process a wide variety of formats flexibly and reliably. 3D energy supply systems or fail-safe chainflex cables specially developed for use in motion are the right solution here. Format adjustment is quick and easy with dust-resistant linear guides, plain and ball bearings that function without external lubrication or maintenance

A lot of practical examples with motion plastics in the woodworking industry are available here

Our top products for throughfeed machines

Strong, easy and quick to fill

30% lighter than comparable size E4.1 series
Openable in the inner and outer radii from both sides
Also suitable for side-mounted, standing and hanging applications

Can be moved along three dimensions

Defined bend radius of 50 to 182mm for maximum cable service life
High tensile strength and very flexible
Various versions from closed to light

3D e-chain triflex R

High efficiency and low wear

Seven different materials and lubrication-free operation
Low coefficient of friction and high efficiency
Up to 50.9% lower procurement costs

dryspin lead screw

Wide variety thanks to modular system

100% lubrication-free
Corrosion-free and hygienic
Quiet and wear-resistant

drylin W

Plastic plain bearings

Insensitive to dust and dirt
High compressive strength
Free from lubrication and maintenance
Predictable service life

iglidur G plain bearings

Suitable for ctrlX drives

Secure data exchange between motor and encoder system
Save about 40% installation space in the chain
50% less cables required

chainflex hybrid servo cable

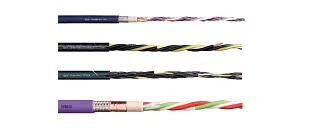

PVC cables in energy chains

- doesn't work? With chainflex, it even works very well!

Can expensive PUR cables be safely replaced by more cost-effective PVC cables, even in moving applications? Decide objectively whether a cable with PVC jacket is not only sufficient, but may be the better solution.

► Check the price here and save money

... and many more success stories

Here you can find a wide range of other applications from the woodworking and wood-processing industry

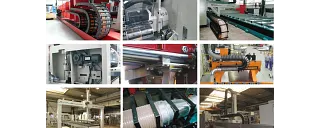

Application examples from the woodworking industry
