"Classic" series - available on a continuing basis

Download

"Classics" catalog - older products available on a continuing basis

Zipper "Classic" e-chain® - Quick installation with zipper

Delivery time on request Rip-open from outside

Inner height hi: 17 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 38 - 180 mm
Pitch: 30,5 mm


E2 mini "Classic" - One- and two-piece - Small up to medium sizes

Delivery time on request Closed design

Inner height hi: 18 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 28 - 180 mm
Pitch: 30,5 mm

Delivery time on request Snap-open along outside on one side

Inner height hi: 17 mm
Inner widths Bi: 15 - 50 mm
bending radii R: 38 - 180 mm
Pitch: 30,5 mm

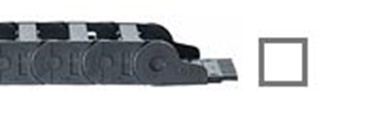

E2 medium "Classic" - For new constructions, please provide for E2/000

Delivery time on request Closed design

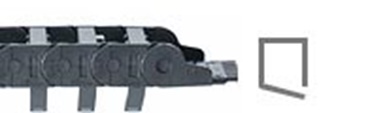

Delivery time on request Crossbars opened on the inside

Opened on one side

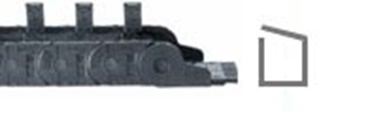

Delivery time on request Crossbars opened on the outside

Opened on one side

Closed design

Snap-open along one side, crossbars to be opened from inside

Snap-open along one side, crossbars to be opened from outside


E2 R "Classic" - Two-piece E-Tubes - Chip protection - Very silent operation

Snap-open along the outside

Delivery time on request Two-part E-Tube

Inner height hi: 35 mm
Inner widths Bi: 50 - 75 mm
bending radii R: 75 - 250 mm
Pitch: 33,3 mm

Delivery time on request Two-part E-Tube

Inner height hi: 45 mm
Inner widths Bi: 75 - 175 mm
bending radii R: 100 - 300 mm
Pitch: 36 mm


E4/light "Classic" - Expiring series - For new constructions, please use E4/light

Delivery time on request With crossbars at every link, snap-open along both sides

Delivery time on request With crossbars at every other link, snap-open along both sides

Delivery time on request E-Tube, snap-open on both sides

Pivotable cover

With crossbars at every link, snap-open along both sides

With crossbars at every other link, snap-open along both sides

E-Tube, snap-open along both sides, swivel lid


E4/0 "Classic" - Expiring series - For new constructions, please use E4/0

Delivery time on request With crossbars at every link, snap-open along both sides

Delivery time on request With crossbars at every other link, snap-open along both sides

Delivery time on request E-Tube, snap-open on both sides

Pivotable cover

With crossbars at every link, snap-open along both sides

With crossbars at every other link, snap-open along both sides

E-Tube, snap-open along both sides, swivel lid


E-Band

Filling in the outer radius

Inner height hi: 25.5 mm
Inner width Bi: 25,5 mm
Bending radii R: 45 - 200 mm
Pitch: 25 mm


System autoglide

Version 2 - For Series 200 e-chains®

Injection-molded autoglide teeth along the inner radius.

Inner height hi: 25 mm
Inner height Bi: 57 mm
Bending radii R: 100 mm
Pitch: 45 mm


Delivery time on request
